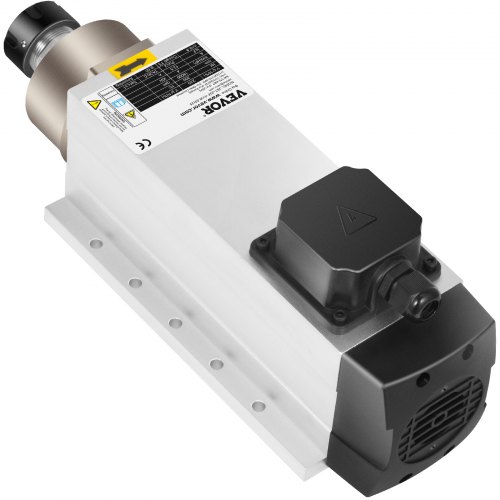

VEVOR 4KW 2220V Air Cooled Spindle Motor ER25 CNC Air Cooling Spindle Motor for CNC Engraving Milling Machine
Price including VAT See details
Save up to 15% with PRO price. Sign up for free PRO Account.
FREE Returns.Details
About This Item
- Technical Parameters: Spec: φ3 x 13 in (Diameter: 7.5 cm x Length: 33.9 cm); Power: 4KW; Voltage: 220V; Current: 13.5A; Collet Size: ER25; Bearings: 4 bearings; Frequency: 300 Hz; Speed: 18000 R/min; Runout off: less than 0.002 mm. Mainly used for engraving machine or used with frequency converter.
- ER25 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.002mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.
- Powerful Bearing: The air spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.
- Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed air cooling system has a better heat dissipation effect to ensure smooth operation.
- Wide Application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It uses air circulation to cool the heat and has a good heat dissipation effect.
People Who Bought This Item Also Bought
Description
4KW Air Cooled Spindle Motor
ER25 Collet & Four Bearings & 18000 R/min
These spindle motors adopt imported bearings and high-quality materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
- Technical Parameters
- ER25 Standard Collet
- Powerful Bearing
- Low Noise & Heat Dissipation
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Dynamic Balance Design
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER25 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.
Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (18000R/min) and strong power bring higher efficiency than before.
Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.
Premium Material
The aluminum body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.
Refined Internal Details
The CNC router spindle is a built-in wire box directly connected to the wire or VFD, effectively improving the stable and smooth operation. The upgraded wrench is provided for easy handling.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.
Specifications
- Power: 4 KW
- Voltage: 220V
- Frequency: 300 Hz
- Speed: 18000 R/min
- Runout off: Less than 0.002 mm
- Maximum Torque: 2.1NM
- Bearings: 7003 x 2, 7007 x 2
- Product Dimension: 3 x 13 in / 7.5 x 33.9 cm
- Weight: 18.7 lbs / 8.5 kg
Package Content
- 1 x Air Cooled Spindle Motor
- 2 x ER25 Collets
- 2 x Wrenches
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
4KW Air Cooled Spindle Motor
ER25 Collet & Four Bearings & 18000 R/min
These spindle motors adopt imported bearings and high-quality materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
- Technical Parameters
- ER25 Standard Collet
- Powerful Bearing
- Low Noise & Heat Dissipation
Dynamic Balance Design
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER25 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.
Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (18000R/min) and strong power bring higher efficiency than before.
Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.
Premium Material
The aluminum body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.
Refined Internal Details
The CNC router spindle is a built-in wire box directly connected to the wire or VFD, effectively improving the stable and smooth operation. The upgraded wrench is provided for easy handling.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.
Package Content
- 1 x Air Cooled Spindle Motor
- 2 x ER25 Collets
- 2 x Wrenches
Specifications
- Power: 4 KW
- Voltage: 220V
- Frequency: 300 Hz
- Speed: 18000 R/min
- Runout off: Less than 0.002 mm
- Maximum Torque: 2.1NM
- Bearings: 7003 x 2, 7007 x 2
- Product Dimension: 3 x 13 in / 7.5 x 33.9 cm
- Weight: 18.7 lbs / 8.5 kg
Compare with similar items
Specifications
| Collet | ER25 (6 mm) |
| Power | 4 KW |
| Voltage | 220 V |
| Current | 10 A |
| Frequency | 300 Hz |
| Speed | 1-18000 rpm |
| Runout off | 0.01 mm |
| Cooling | Air cooling |
| Bearings | 7003 x 2, 7007 x 2 |
| Application | Milling |
| Usage | Engraving machines |
| Gross weight | 9 kg(19.84 lbs) |
| Package size | 40 x 20 x 17 cm (15.75 x 7.87 x 6.69 inch) |
Questions and Answers
Q: Where is this item shipped from? EU? I'm asking beacuse of eu import custom.
A: It will be shipped from the warehouse closest to you in Europe.
by vevor on
Q: what diameter does the nut tighten?
A: It is M32*1.5.
by vevor on
Q: Merhaba türkiyeye teslimat varmi daha önceki siparişim adrese geldi ama şuan türkiye yok gibi listede
A: Üzgünüz, şu anda artık Türkiye'ye teslimat yapmıyoruz.
