VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
2
Price including VAT See details
Save up to 15% with PRO price. Sign up for free PRO Account.
QTY: 1
Add to Cart
Buy Now
Add to Quote
FREE Returns.Details
Add to Wishlist
About This Item
  • Professional PV Combiner Box: PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter and optimize the system structure. Make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.
  • Secure & Reliable Protection: The solar PV combiner box is equipped with 4 pcs 15A DC fuses, a high-voltage lightning arrester, and a 500V 63A air circuit breaker. It has short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to photovoltaic panels and inverters when fault occurs.
  • IP65 Waterproof & ABS Shell: The IP65 design of the solar PV combiner shell is waterproof and dustproof, ensuring that frequent replacement is not needed. The sturdy shell is made of high-quality ABS plastic material, insulating, moisture-proof, and has no dripping. In addition, it has impact resistance and high break resistance, keeping your equipment well protected in harsh environments.
  • Easy Installation & Wiring: A plug & play and pre-connected cable offers an easy solution for solar panel connection, saving at least 1-2 hours of wiring by hand. The box PV combiner can be mounted on any regular surface with provided mounting buckles, and no key is needed to open and close the box. Built-in with a ground wire connector, ground wire installation is also available. Compatible with any brand of solar panels with solar connectors.
  • Extensive Application: The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems. It can support solar panel systems up to 720W in 12V system, 1440W in 24V system, 2880W in 48V system.
See more See less

Frequently Bought Together

People Who Bought This Item Also Bought

Description
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof

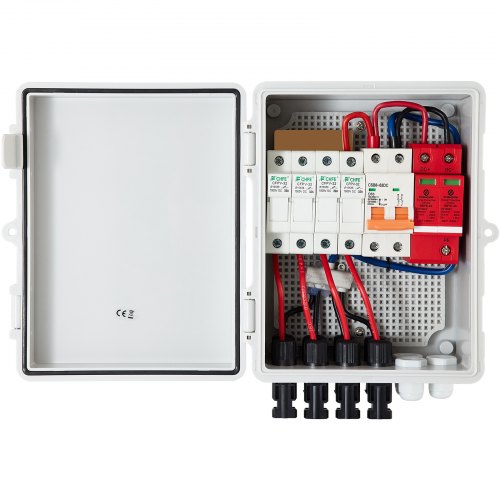

4 String Solar PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Our PV Combiner Box is a perfect device designed to reduce the connection line between PV modules and inverters, facilitate maintenance and improve reliability. Equipped with high-voltage lightning arresters, 15A DC fuses, and circuit breakers to play a role in circuit protection and lightning protection. It supports photovoltaic On-Grid/Off-Grid solar power generation systems, solar panel systems, up to 700W in 12V system, 1400W in 24V system, 2800W in 48V system.
  • Professional PV Combiner Box
  • Secure & Reliable Protection
  • IP65 Waterproof & ABS Shell
  • Easy Installation & Wiring
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
High Voltage Lightning Arrester
The combiner box for solar systems is built with a professional high voltage lightning arrester to provide lightning and rain protection. Both positive and negative with thunder proof protection.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures even more security on construction sites.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof

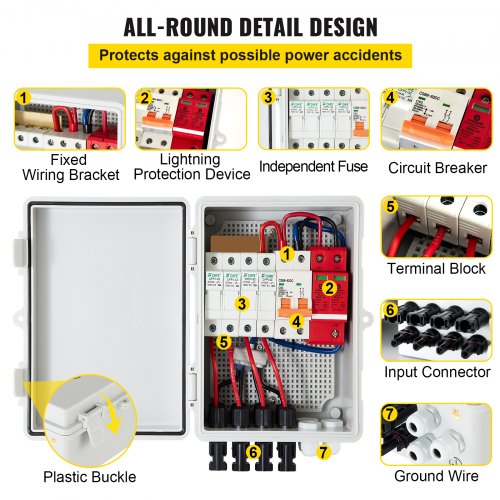

Thoughtful Design
The PV combiner features 4 x 15A fuses for good current limiting characteristics and breaking high ability. 63A air circuit breaker can cut off and connect the load circuit, providing short-circuit fault protection.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Simple & Straightforward Connection
All wires are pre-wired in the solar breaker combiner box, very sturdy to combine your solar panels, making your solar panel system connection easier. It comes with complete mounting accessories to be installed anywhere.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Premium ABS Material
The board wall distributor features ABS material with high impact strength, good weather resistance, and strong wear resistance. In addition, the plastic coating protects against water and dirt.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Extensive Application
The solar breaker combiner box is ideal for photovoltaic grid-connected and off-grid power generation systems. It is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Specifications
  • Model: SWHL-4
  • Number Of Max. Connection PV Array: 4
  • Max. Input Current of Single PV Array: 15A
  • Total Input Current of PV Array: 60A
  • Max Input Voltage of Single PV Array: 500V
  • Max Output Voltage: 500V
  • Protection Grade: IP65
  • Operational Environment Temperature: -30℃ to 70℃ / -22℉ to 158℉
  • Relative Humidity: 0-95%, No Condensation
  • Cooling Method: Natural Cooling
  • Surge Lightning Protection: Yes
  • Surge Protective Device: in: 20kA; Imax: 40kA; Up: 1.8kV
  • SPD Indicate Light Status: Green: Normal; Red: Triggered
  • Air Circuit Breaker Parameter: 500V, 63A; ON/OFF
  • Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
  • Fuse Holder Parameter: DC1000V, 32A
  • RV Solar System: 720W in 12V System, 1440W in 24V System, 2880W in 48V System
  • Product Dimensions(L x W x H): 17 x 23 x 11 cm / 6.69 x 9.06 x 4.33 in
  • Net Weight: 1.8 kg / 3.9 lbs
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Package Content
  • 1 x PV Combiner Box
  • 1 x Solar Connector Tool
  • 4 x Mounting Buckles
  • 4 x Screws
  • 1 x Product Manual
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
4 String Solar PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Our PV Combiner Box is a perfect device designed to reduce the connection line between PV modules and inverters, facilitate maintenance and improve reliability. Equipped with high-voltage lightning arresters, 15A DC fuses, and circuit breakers to play a role in circuit protection and lightning protection. It supports photovoltaic On-Grid/Off-Grid solar power generation systems, solar panel systems, up to 700W in 12V system, 1400W in 24V system, 2800W in 48V system.
  • Professional PV Combiner Box
  • Secure & Reliable Protection
  • IP65 Waterproof & ABS Shell
  • Easy Installation & Wiring
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
High Voltage Lightning Arrester
The combiner box for solar systems is built with a professional high voltage lightning arrester to provide lightning and rain protection. Both positive and negative with thunder proof protection.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures even more security on construction sites.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Thoughtful Design
The PV combiner features 4 x 15A fuses for good current limiting characteristics and breaking high ability. 63A air circuit breaker can cut off and connect the load circuit, providing short-circuit fault protection.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Simple & Straightforward Connection
All wires are pre-wired in the solar breaker combiner box, very sturdy to combine your solar panels, making your solar panel system connection easier. It comes with complete mounting accessories to be installed anywhere.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Premium ABS Material
The board wall distributor features ABS material with high impact strength, good weather resistance, and strong wear resistance. In addition, the plastic coating protects against water and dirt.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Extensive Application
The solar breaker combiner box is ideal for photovoltaic grid-connected and off-grid power generation systems. It is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc.
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Package Content
  • 1 x PV Combiner Box
  • 1 x Solar Connector Tool
  • 4 x Mounting Buckles
  • 4 x Screws
  • 1 x Product Manual
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse, 63A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Specifications
  • Model: SWHL-4
  • Number Of Max. Connection PV Array: 4
  • Max. Input Current of Single PV Array: 15A
  • Total Input Current of PV Array: 60A
  • Max Input Voltage of Single PV Array: 500V
  • Max Output Voltage: 500V
  • Protection Grade: IP65
  • Operational Environment Temperature: -30℃ to 70℃ / -22℉ to 158℉
  • Relative Humidity: 0-95%, No Condensation
  • Cooling Method: Natural Cooling
  • Surge Lightning Protection: Yes
  • Surge Protective Device: in: 20kA; Imax: 40kA; Up: 1.8kV
  • SPD Indicate Light Status: Green: Normal; Red: Triggered
  • Air Circuit Breaker Parameter: 500V, 63A; ON/OFF
  • Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
  • Fuse Holder Parameter: DC1000V, 32A
  • RV Solar System: 720W in 12V System, 1440W in 24V System, 2880W in 48V System
  • Product Dimensions(L x W x H): 17 x 23 x 11 cm / 6.69 x 9.06 x 4.33 in
  • Net Weight: 1.8 kg / 3.9 lbs
See more
Compare with similar items
See more

Specifications

Model SWHL-4
Number Of Max. Connection PV Array 4
Max. Input Current of Single PV Array 15A
Total Input Current of PV Array 60A
Max Input Voltage of Single PV Array 500V
Max Output Voltage 500V
Protection Grade IP65
Operational Environment Temperature -30℃ to 70℃ / -22℉ to 158℉
Relative Humidity 0-95%, No Condensation
Cooling Method Natural Cooling
Surge Lightning Protection Yes
Surge Protective Device in
SPD Indicate Light Status Green
Air Circuit Breaker Parameter 500V, 63A; ON/OFF
Fuse Parameter DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
Fuse Holder Parameter DC1000V, 32A
RV Solar System 720W in 12V System, 1440W in 24V System, 2880W in 48V System
Product Dimensions(L x W x H) 17 x 23 x 11 cm / 6.69 x 9.06 x 4.33 in
Net Weight 1.8 kg / 3.9 lbs
Questions and Answers
Q: Kan boksen anvendes til skift fra den offentlige netforsyning til huset, så man manuelt kan afbryde nettet og samtidig skifte til eps udgangen i inverteren så man kan nødforsyne huset via husets eksisterende ledningsnet fra solcelleanlæggets batteri backup 7,8 kw/h. I stedet. ( 20 paneler a 390 wp, fordelt på 2 strenge ialt.)
A: Hej, denne enhed bruges kun i DC-kredsløbet. Indgangsenden er forbundet til solpanelet, og udgangsenden er DC-strøm. Den kan bruges til at tilslutte en inverter. Du kan bruge en nettilsluttet inverter til at møde nettet -forbundne behov efter dine behov.
by vevor on
Q: What is the maximum gauge wire you can use with a 6 string combiner box?
A: For the 6-way photovoltaic combiner box, the minimum wire specification for each input is 2.5mm²=13AWG. The minimum size of the total output wire is 16mm²=5AWG.
by vevor on
See all 2 answered questions
