GSC300MMDC0000001V0

VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
45
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002" Optical Length, Linear Glass Scale, Aluminum Body for Drilling, Grinding, Mill Milling Lathe machine with Accessories
Price including VAT See details
Stroke Distance: 300 mm
100 mm 200 mm 350 mm 450 mm 400 mm 300 mm 250 mm 150 mm
QTY: 1
Add to Cart
Buy Now
Checkout with
Add to Wishlist
About This Item
  • 【HIGH PERFORMANCE】- Our grating and precision ruler series have passed strict quality inspection. Meet the standard of accuracy and stiffness, good straightness and precise measurement. Travel Length: 300mm, Accuracy: ±0.005 mm, Resolution: 5μm. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
  • 【DURABLE ALUMINUM BODY】- Aluminum profile scale body, and head with zinc alloy die casting with chrome plating, corrosion-proof. Beautiful and decent appearance, reasonable design with good rigidity.
  • 【DOUBLE SEAL & SIGNAL CABLE】- The Linear Scale Encoder features a double layer lip seal to give extra protection from contamination, high wear-proof. 3m signal cable applies multilayer shielded wire steel and metal shell protection.
  • 【STABLE SLIDE PART】- Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. With an additional T-slot (Not including in the package), the back groove could be used for installation when the contact surface is too short, or could be an addition support when using a long linear scale.
  • 【CONVENIENT & PRACTICAL】- A rigid metal extrusion with slotted end blocks for simple adjustable mounting. Several mounting points for through hole or easy attachment to brackets and additional mounting hardware.
See more See less

Frequently Bought Together

People Who Bought This Item Also Bought

Description
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
300mm Linear Scale Encoder With 3m Cable
Here we offer you 300mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal & Signal Cable
  • Stable Slide Part
  • Convenient & Practical

VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Excellent Performance
The Linear scale applies intelligent chip with travel length 0-300mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002

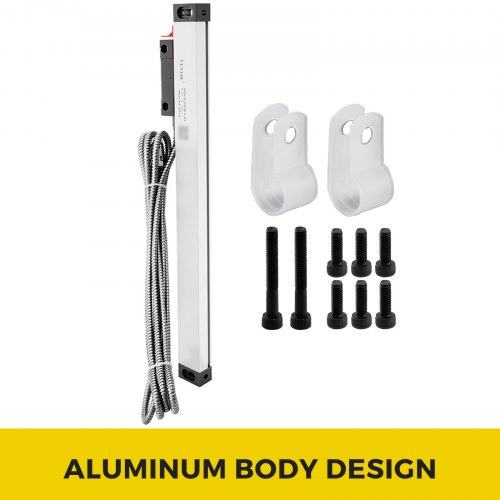

Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Double Seal & Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 300mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53
  • Product Dimension(LxWxH): 44 x 2 x 5cm (17.32" x 0.79" x 1.97")
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002

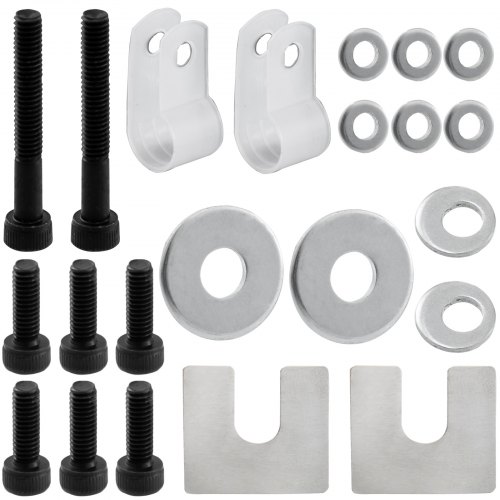

Package Content
  • 1 x Linear Scale Encoder
  • 1 x Set of Accessory
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002

VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
300mm Linear Scale Encoder With 3m Cable
Here we offer you 300mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal & Signal Cable
  • Stable Slide Part
  • Convenient & Practical
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Excellent Performance
The Linear scale applies intelligent chip with travel length 0-300mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Double Seal & Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Package Content
  • 1 x Linear Scale Encoder
  • 1 x Set of Accessory
VEVOR Lathe Linear Scale 300 mm Precision Linear Scale with High Accuracy 0.0002
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 300mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53
  • Product Dimension(LxWxH): 44 x 2 x 5cm (17.32" x 0.79" x 1.97")
See more
Compare with similar items
See more

Specifications

Voltage 5V DC
Current 50mA
Travel Length 300mm
Grating Pitch 0.02mm (50LP/min)
Resolution 5μm (0.005mm) 0.0002"
Accuracy ±0.005 mm or 0.0002" (at 20 deg C)
Response Speed 60m/min or 40inch/sec
Cable Length 3m
Sealing Double seal
IP Class 53
Product Dimension(LxWxH) 44 x 2 x 5cm (17.32" x 0.79" x 1.97")
