VEVOR K12-125 125mm 5 Inch 4 Jaw Lathe Chuck Reversible Self Centering CNC Milling Cast Iron
Price including VAT See details
About This Item
- 【PREMIUM MATERIAL】 - Diameter: 125 mm (4.92 in); Clamping Range:2.5-110 mm (0.098"-4.33"); Jamming Range: 38-125 mm (1.5"-4.92"). The self-centering lathe chuck body is made of quality cast iron that is strong and durable. Several rigorous quality tests have proved that.
- 【INTERNAL & EXTERNAL JAWS】 - The 4-jaw lathe chuck comes with two sets of jaws—inside and outside—to extend its holding range, and therefore allows you to handle a wide variety of stock sizes.
- 【OF HIGH PRECISION】 - The self-centering lathe part contains a delicate bevel gear and pinion gears. They contribute to precise processing progress, bearing tolerance of ≤0.07 mm (0.003 in).
- 【WITH HIGH EFFICIENCY】 - The mini lathe chuck is easy to use by turning the ergonomic T chuck key (included in the package). Since the changeover and setting time is cut, your lathe can work with higher efficiency.
- 【WIDE APPLICATION】 - The metal lathe chuck is widely applied to metal lathes for the general turning of shafts and some more delicate materials. It would be the perfect choice for your lathe machine.
People Who Bought This Item Also Bought
Description

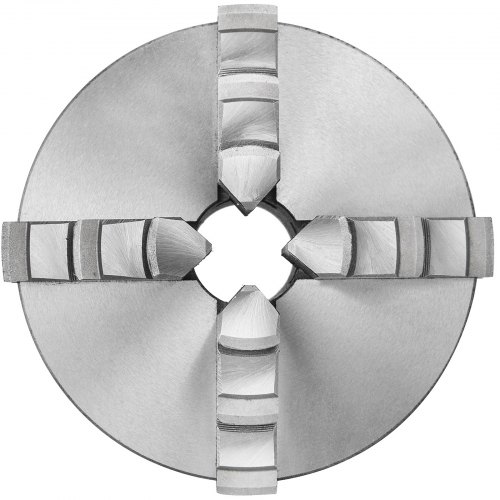

K12-125 4-Jaw Self-Centering Chuck
The self-centering lathe chuck is composed of a strong cast iron body and four steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. After fastened by a single T handle, it can handle more materials than a 3-jaw one, in various shapes.
- Premium Material
- Internal & External Jaws
- Of High Precision
- With High Efficiency
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Quality Cast Iron
The lathe chuck body is made of high-quality cast iron. The surface is nicely ground with a nice radius on all external edges.
Two Sets of Jaws
The lathe collet chuck comes with inward and outward stepped jaws that enable the chuck to turn larger diameter stock.
Self Centering Chuck
The three jaws will efficiently push the material to be processed from 4 directions simultaneously until it is held tightly.
With Great Accuracy
The 4-jaw mini lathe chuck of the tolerance ≤0.003 in works with few vibrations, ensuring accurate finished parts.
Easy to Operate
It is easy for you to adjust the jaws by turning the chuck key. Quicker installation leaves more time for real work.
Wide Application
The manual self-centering chuck is compact and convenient, and it is the perfect choice for your lathe machine, grinding machines, or milling machines.
Specifications
- Chuck Body Material: Cast Iron
- Jaws Material: 40CR Steel
- Bevel Gear Material: 40CR Steel
- Pinions Material: 20CR Steel
- Size: 125 mm (4.92")
- Center Hole Diameter: 30 mm (1.18")

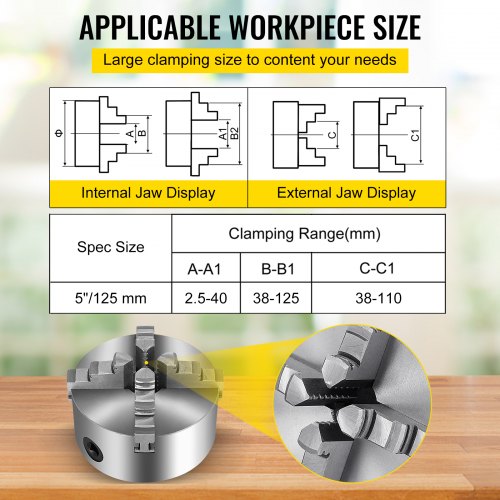

- Internal Jaw Clamping Range (A-A1): 2.5-40 mm (0.098"-1.575")
- Internal Jaw Jamming Range (B-B1): 38-125 mm (1.5"-4.92")
- External Jaw Clamping Range (C-C1): 38-110 mm (1.5"-4.33")
- Mounting Thread: 3-M8
- Gross Weight: 11.9 lb (5.4 kg)
- Package Dimensions (LxWxH): 6.3"x6.3"x5.5" (16x16x14 cm)
Package Content
- 1 x Lathe Chuck Body
- 1 x Internal Jaw Set
- 1 x External Jaw Set
- 3 x Mounting Bolts
- 1 x Chuck Key
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
K12-125 4-Jaw Self-Centering Chuck
The self-centering lathe chuck is composed of a strong cast iron body and four steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. After fastened by a single T handle, it can handle more materials than a 3-jaw one, in various shapes.
- Premium Material
- Internal & External Jaws
- Of High Precision
- With High Efficiency
Quality Cast Iron
The lathe chuck body is made of high-quality cast iron. The surface is nicely ground with a nice radius on all external edges.
Two Sets of Jaws
The lathe collet chuck comes with inward and outward stepped jaws that enable the chuck to turn larger diameter stock.
Self Centering Chuck
The three jaws will efficiently push the material to be processed from 4 directions simultaneously until it is held tightly.
With Great Accuracy
The 4-jaw mini lathe chuck of the tolerance ≤0.003 in works with few vibrations, ensuring accurate finished parts.
Easy to Operate
It is easy for you to adjust the jaws by turning the chuck key. Quicker installation leaves more time for real work.
Wide Application
The manual self-centering chuck is compact and convenient, and it is the perfect choice for your lathe machine, grinding machines, or milling machines.
Package Content
- 1 x Lathe Chuck Body
- 1 x Internal Jaw Set
- 1 x External Jaw Set
- 3 x Mounting Bolts
- 1 x Chuck Key
Specifications
- Chuck Body Material: Cast Iron
- Jaws Material: 40CR Steel
- Bevel Gear Material: 40CR Steel
- Pinions Material: 20CR Steel
- Size: 125 mm (4.92")
- Center Hole Diameter: 30 mm (1.18")
- Internal Jaw Clamping Range (A-A1): 2.5-40 mm (0.098"-1.575")
- Internal Jaw Jamming Range (B-B1): 38-125 mm (1.5"-4.92")
- External Jaw Clamping Range (C-C1): 38-110 mm (1.5"-4.33")
- Mounting Thread: 3-M8
- Gross Weight: 11.9 lb (5.4 kg)
- Package Dimensions (LxWxH): 6.3"x6.3"x5.5" (16x16x14 cm)
Compare with similar items
Specifications
| Chuck Body Material | Cast Iron |
| Jaws Material | 40CR Steel |
| Bevel Gear Material | 40CR Steel |
| Pinions Material | 20CR Steel |
| Size | 125 mm (4.92") |
| Center Hole Diameter | 30 mm (1.18") |
| Internal Jaw Clamping Range (A-A1) | 2.5-40 mm (0.098"-1.575") |
| Internal Jaw Jamming Range (B-B1) | 38-125 mm (1.5"-4.92") |
| External Jaw Clamping Range (C-C1) | 38-110 mm (1.5"-4.33") |
| Mounting Thread | 3-M8 |
| Gross Weight | 11.9 lb (5.4 kg) |
| Package Dimensions (LxWxH) | 6.3"x6.3"x5.5" (16x16x14 cm) |
