BJDJ86HS156ESBH12V9
Nema34 12nm Closed Loop Hybrid Servo Motor Stepper Motor 205mm 6a 2phase
Price including VAT See details
Save up to 15% with PRO price. Sign up for free PRO Account.
FREE Returns.Details
About This Item
- Full Closed-loop Control: Stepping closed-loop circuit system, no loss of movement synchronization. Motor runs smoothly, vibrates mildly, and improves acceleration deceleration dynamic performance.
- Protective Function: Stepper motor driver supports over current protection, over voltage protection. Insulation Class B.
- Main Parameters: Motor has 12N.m holding torque, continuous current 6A. Shaft Length: 3.8cm(1.5"), Shaft Width: 1.5cm(0.59"). DC Resistance(±10%): 0.8Ω, Phase Inductance(±20%): 6mH, Insulation Resistance: 100MOhm(500VDC).
- High Speed Response: Applied new control technology and vector control technology to prevent out-of-control and ensure product accuracy. Especially for short-distance, short-time, fast start-stop and zero-speed stable stop.
- Various Application: Durable material frame for long life using with desktop CNC routers, small CNC mills, laser cutters/engravers, dental mills, electronic assembly &inspection equipments, labeling equipments, etc.
People Who Bought This Item Also Bought
Description
Nema34 12N.m Closed Loop Stepper Motor Hybrid Servo Drive Kit
This two-phase hybrid stepper motor servo driver adopts new control technology and closed-loop control technology, avoiding loss of movement synchronization and ensures accuracy. Load-based current control technology can effectively reduce temperature rise of motor and prolong motor service life. Built-in position and alarm output signal is convenient for PC monitoring and controlling. Position out-of-tolerance alarm function ensures machining equipment safe operation.
- Full Closed-loop Control
- Protective Function
- Main Parameters
- High Speed Response
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Strong Compatibility
Full closed loop control, compatible with 1000 lines encoder. No adjustment in general application. Without losing step, high accuracy in position, close to 100% of the torque output.
Multiple Protection
Protective function covers over voltage, over current, tracking error and over-proof. Insulation Class: B.
Important Parameters
Working with continuous voltage: 24-1000VDC, motor has torque 12N.m, continuous current 6A. Shaft Length: 3.8cm(1.5"), Shaft Width: 1.5cm(0.59").
Durable Frame
Black motor body + blue driver lid are made of silicon steel sheet and aluminum alloy, durable and long lasting.
Super Performance
Fit for all kinds of machinery load conditions (including low rigidity belt wheel and pulley) without adjusting the gain parameters. Suitable for condition of short-distance quickly start/stop and zero-speed stop stable.
Wide Application
Widely used in engraving machines, laser machines, CNC machine tools, medical equipment, electronic processing equipment, automatic production lines, lithium production equipment, textile machinery, clothing and other automation equipment.
Specifications
- Continuous Voltage: 24-100VDC
- Step Angle: 1.8
- DC Resistance(±10%): 0.8Ω
- Phase Inductance(±20%): 6mH
- Insulation Resistance: 100MOhm(500VDC)
- Insulation Class B
- Encoder Resolution: 1000 Line
- Weight: 5.7Kg
Package Content
- 1 x Hybrid Closed-loop Stepper Motor

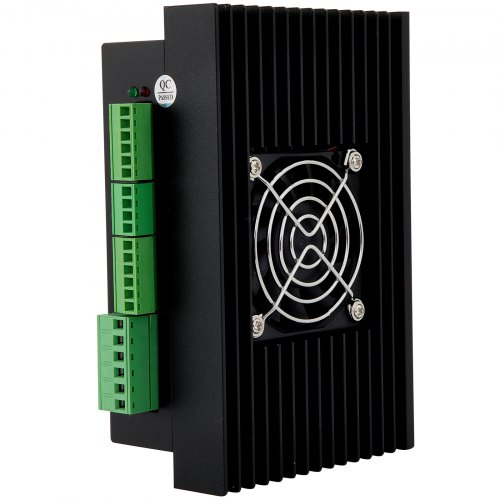

- 1 x Stepper Driver
- 1 x Encoder Cable
- 1 x Power Cable
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Nema34 12N.m Closed Loop Stepper Motor Hybrid Servo Drive Kit
This two-phase hybrid stepper motor servo driver adopts new control technology and closed-loop control technology, avoiding loss of movement synchronization and ensures accuracy. Load-based current control technology can effectively reduce temperature rise of motor and prolong motor service life. Built-in position and alarm output signal is convenient for PC monitoring and controlling. Position out-of-tolerance alarm function ensures machining equipment safe operation.
- Full Closed-loop Control
- Protective Function
- Main Parameters
- High Speed Response
Strong Compatibility
Full closed loop control, compatible with 1000 lines encoder. No adjustment in general application. Without losing step, high accuracy in position, close to 100% of the torque output.
Multiple Protection
Protective function covers over voltage, over current, tracking error and over-proof. Insulation Class: B.
Important Parameters
Working with continuous voltage: 24-1000VDC, motor has torque 12N.m, continuous current 6A. Shaft Length: 3.8cm(1.5"), Shaft Width: 1.5cm(0.59").
Durable Frame
Black motor body + blue driver lid are made of silicon steel sheet and aluminum alloy, durable and long lasting.
Super Performance
Fit for all kinds of machinery load conditions (including low rigidity belt wheel and pulley) without adjusting the gain parameters. Suitable for condition of short-distance quickly start/stop and zero-speed stop stable.
Wide Application
Widely used in engraving machines, laser machines, CNC machine tools, medical equipment, electronic processing equipment, automatic production lines, lithium production equipment, textile machinery, clothing and other automation equipment.
Package Content
- 1 x Hybrid Closed-loop Stepper Motor
- 1 x Stepper Driver
- 1 x Encoder Cable
- 1 x Power Cable
Specifications
- Continuous Voltage: 24-100VDC
- Step Angle: 1.8
- DC Resistance(±10%): 0.8Ω
- Phase Inductance(±20%): 6mH
- Insulation Resistance: 100MOhm(500VDC)
- Insulation Class B
- Encoder Resolution: 1000 Line
- Weight: 5.7Kg
Compare with similar items
Specifications
| Continuous Voltage | 24-100VDC |
| Step Angle | 1.8 |
| DC Resistance(±10%) | 0.8Ω |
| Phase Inductance(±20%) | 6mH |
| Insulation Resistance | 100MOhm(500VDC) |
| Insulation Class B | |
| Encoder Resolution | 1000 Line |
| Weight | 5.7Kg |
Questions and Answers
Q: Finns det program som man kan ställa in hastighet, kraft och slaglängd (antal varv) och så. eller hur ställer man in parametrar
A: Den har ingen programmeringsprogramvara och kräver att du programmerar den själv.
by vevor on
Q: 12nm is the holding or dynamic torque? If it’s the holding, what is the dynamic torque?
A: 12nm is static torque.
by vevor on
Q: what power supply do i need (voltage V) (power W) to power this nema34 stepper motor?
A: It is 36-48V power supply.
by vevor on
