VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
83
Price including VAT See details
Save up to 15% with PRO price. Sign up for free PRO Account.
QTY: 1
Add to Cart
Buy Now
Add to Quote
FREE Returns.Details
Add to Wishlist
About This Item
  • 【HIGH PERFORMANCE】- Our grating and precision ruler series have passed strict quality inspection. Meet the standard of accuracy and stiffness good straightness and precise measurement. Travel Length: 200mm, Accuracy: ±0.005 mm, Resolution: 5μm. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
  • 【DURABLE ALUMINUM BODY】- Aluminum profile scale body, and head with zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
  • 【DOUBLE SEAL+SIGNAL CABLE】- The Linear Scale Encoder features a double layer lip seal to give extra protection from contamination, high abrasive resistance. 3m signal cable applies multilayer shielded wire steel and metal shell protection.
  • 【STABLE SLIDE PART】- Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. With an additional T-slot (Not including in the package), the back groove could be used for installation when the contact surface is too short, or could be addition support when using long linear scale.
  • 【CONVENIENT & PRACTICAL】- A rigid metal extrusion with slotted end blocks for simple adjustable mounting. Several mounting points for through hole or easy attachment to brackets and additional mounting hardware.
See more See less

Frequently Bought Together

People Who Bought This Item Also Bought

Description
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine

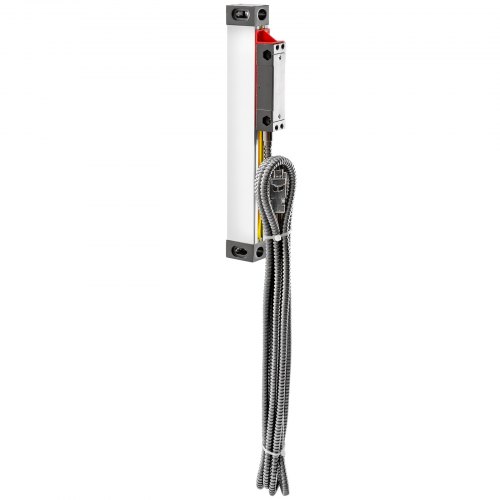

200mm Linear Scale Encoder With 3m Cable
Here we offer you 200mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal+Signal Cable
  • Stable Slide Part
  • Convenient & Practical
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Excellent Performance
The Linear scale applies intelligent chip with travel length 0-200mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. 100% brand new and high quality. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Double Seal+Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 200mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53
  • Product Dimention(LxWxH): 34 x 2 x 5cm (13.39" x 0.79" x 1.97")
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Package Content
  • 1 x Linear Scale Encoder
  • 1 x Set of Accessory
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
200mm Linear Scale Encoder With 3m Cable
Here we offer you 200mm Linear Scale with accuracy 0.0002" for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools to allow the operator to work faster with resolution: 5μm.
  • High Performance
  • Durable Aluminum Body
  • Double Seal+Signal Cable
  • Stable Slide Part
  • Convenient & Practical
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Excellent Performance
The Linear scale applies intelligent chip with travel length 0-200mm, high accuracy 5um, grating pitch: 0.02mm, response speed: 60m/min. 100% brand new and high quality. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Aluminum Body Design
The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Double Seal+Signal Cable
The encoder beam features a double layer lip seal to give extra protection from contamination. Signal cable uses multilayer shielded wire steel and metal shell protection.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Stable 5 Bearing System
Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Effortless To Install
The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware. Comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Wide Application
Perfect for milling machine, drilling machine, grinding machine, lathes, profile projector, microscope, video measuring machine, movement control, position monitoring, coordinate measurement and so on.
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Package Content
  • 1 x Linear Scale Encoder
  • 1 x Set of Accessory
VEVOR Digital Linear Scales Travel Length 200MM Axis DRO Digital Readout Linear Scale for Milling Machine
Specifications
  • Voltage: 5V DC
  • Current: 50mA
  • Travel Length: 200mm
  • Grating Pitch: 0.02mm (50LP/min)
  • Resolution: 5μm (0.005mm) 0.0002"
  • Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  • Response Speed: 60m/min or 40inch/sec
  • Cable Length: 3m
  • Sealing: Double seal
  • IP Class: 53
  • Product Dimention(LxWxH): 34 x 2 x 5cm (13.39" x 0.79" x 1.97")
See more
Compare with similar items
See more

Specifications

Voltage 5V DC
Current 50mA
Travel Length 200mm
Grating Pitch 0.02mm (50LP/min)
Resolution 5μm (0.005mm) 0.0002"
Accuracy ±0.005 mm or 0.0002" (at 20 deg C)
Response Speed 60m/min or 40inch/sec
Cable Length 3m
Sealing Double seal
IP Class 53
Product Dimention(LxWxH) 34 x 2 x 5cm (13.39" x 0.79" x 1.97")
Questions and Answers
Typical questions asked about products:Is the product durable?
Ask the First Question
Ratings by Features
Price
Quality
Features
Easy to Use
See more See less
Felhasználó
Mr.
Reviewed on
Már nem először vásárolom, most is mint eddig mindig, tökéletesen működik. Felszerelni egyszerű, 100%-osan pontos és stabil szerkezet. ...See more See less
Helpful
Jarl Åge Haugan
Non
Reviewed on
I'm very pleased. This is easy to assemble and accurate in use. Vevor also has good customer service. ...See more See less
Helpful
Dro
Dro
Reviewed on
Set unit up was straight forward. Although did has to use some of the linear compensation. To get it bang on ...See more See less
Helpful
Hobbyist
Happy with digital scales and DRO
Reviewed on
I have bought digital scales plus a readout unit from Vevor and I'm quite happy with the kit so far. The scales (Chinese of course) are affordable, come well packaged and arrived undamaged. The readout unit likewise. Plugged the leads from the scales into the readout, switched the readout on, and everything worked first time. Plug and play. Have been busy trying to mount the scales onto a hobbyijst's drill/milling machine and that seems to work as well. A sensible set of screws, washers, and cable fasteners are included and I only had to drill and tap holes for the M4 scres to mount the scales. So far managed to install two out of three scales and they work. The aluminium tubing that encloses the glass scales has slots on that take the mounting screws. The slot that takes the reading head is covered by a rubber lips that are pushed open by the reading head and close behind it to prevent dirt from entering. It's possible to fine-adjust the position of the scales before you tighten the screws and fix the scales in place. The reading head comes with threaded holes for the mounting screws, so you want to fix the scales first and then mark, drill, and fix the reading head. I haven't been able to verify the accuracy of the scales yet (I'm going to check it with a dial indicator when everything is installed), but I'm confident that it will be ok. I believe that the readout allows for calibration of the scale but I haven't tested it yet. Recommended ...See more See less
Helpful
Stane
Lathe
Reviewed on
Well packed, fast delivery, good comunication. I will try in future days, everything looks good. Top slide is maybe a litle bit weak. ...See more See less
Helpful
