50A Non-Touch Pilot Arc Plasma Cutter
The plasma cutting machine is equipped with a high-quality non-touch pilot arc plasma torch explicitly developed to enhance and improve the cut quality. The cutting machine is suitable for businesses and DIY users and fully accommodating the demands of professional operators.
- Air Plasma Cutter
- Output & Performance
- Plasma Cutting Torch
- Setup Within 1 Min
- Efficient Cooling System
50A Plasma Cutter
Pilot arc torch efficiently cuts through rough, painted, and rusty surfaces. Compare with oxyhydrogen cutting, plasma cutting is more secure, cost-effective, and easier to use.
Excellent Performance
AC 110/220V; 50A; The plasma cutter can easily cut up to 0.47" " (12 mm) metal under maximum output.
Plasma Cutter Torch
The 4M plasma cutting torch is easy to replace electrode and tip. Pilot arc technology allows you to cut without touching the tip to the metal.

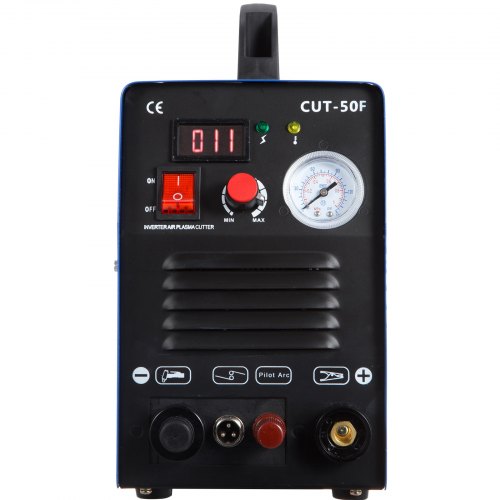

Easy to Operation
The simple but uncluttered control panel is easy to read and operate. In addition, the 220V input design allows the machine to connect to your existing wall outlet easily.
Good Heat Dissipation
The inner fan and heat emission hole on the side of the machine enables the plasma cutter machine to work steadily by its effective cooling.
Wide Application
It is perfect for home DIY in the garage and general repairing work such as cutting stainless steel, alloy steel, mild steel, copper, and aluminum.
Package Content
- 1 x CUT-50F Non-Touch Pilot Arc Plasma Cutter
- 1 x AG-60 Cutting Torch
- 1 x 200A Grounding Clip
- 1 x AFR-2000 Oil Water Separator
- 4 x Hose Clamps
- 2 x Gas Joints
- 2 x Nozzles
- 2 x Electrodes
- 1 x 2 Meters Long Trachea (8mm x 12mm)
- 1 x Manual
Specifications
- Model: CUT-50F
- Input Voltages: 110~220V, 1-PH, 50/60Hz
- Input Current: 40A@110V, 1-PH/20A@220V, 1-PH
- Output Current: 10~50A
- Duty Cycle: 38A
- Gas Supply: Clean, dry, oil-free air
- Recommended Gas Inlet Flow Rate / Pressure: 3.6scfm @ 65psi
- Maximum Severance Cut Thickness: 1/2"
- Mild Steel: Max. 14mm @ 50A
- Stainless Steel: Max. 1/2" (12mm) @ 50A
- Frequency: 80%
- Welding Current: 50A
- Power Factor: 0.93
- Protection Degree: IP21
- Insulation Class: F
- Dimensions (Lx Wx H): 37x 15.5 x30cm
- Weight: 25lb (11kg)
