GSC250-1000MMC001V2
VEVOR 2 precision linear scales with lengths of 250mm and 1000mm (10 inch and 40 inch)
Price including VAT See details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive 5,00€ off for your first three orders on the App. Download Now
combination form:
Scale x 2
FREE Returns.Details
About This Item
- High Performance: Our linear scale has passed strict quality inspection. It meets the standard of accuracy and stiffness. 10''&40''(250 mm & 1000 mm) travel Length and 5μm resolution are able to achieve good straightness and precise measurement. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
- Durable Aluminum Body: This lathe linear scale adopts an aluminum profile scaling body anodized to resist oxidation. The read head is die-casted with hard chrome for more corrosion resistance—a reasonable appearance for good rigidity.
- Double Seal & Signal Cable: This high accuracy linear scale is equipped with a 3 m signal cable. The signal cable is protected by multi-layer shielded wire steel and a soft metal shell. Thus, it has excellent waterproof and anti-interference performance.
- Stable Slide Part: The slide part of this dro linear scale features a reliable five-bearing system with excellent repeated positioning, which makes the measurement result more stable. With an additional T-slot (Not including in the package), the back groove could be used for installation when the contact surface is too short or additional support when using a long linear scale.
- Convenient & Practical: The lathe linear scale has slotted end blocks for easy and adjustable installation. Besides, multiple mounting holes are more accessible to fix to the brackets' position and additional mounting hardware. So it has a wide range of applications.
People Who Bought This Item Also Bought
Description
250 mm & 1000 mm Precision Linear Scale
Our linear scale is a type of encoder with broad applications. It features optimal structure, good appearance, and high rigidity. Therefore, it can meet the needs of the majority of general machine users. The linear scale is suitable for the metalworking, such as lathes, cylindrical grinders, milling machines, surface grinders.
- High Performance
- Durable Aluminum Body
- Double Seal & Signal Cable
- Stable Slide Part
- Convenient & Practical
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

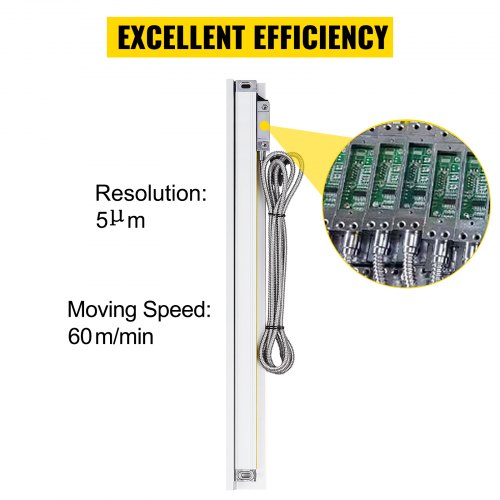

Excellent Efficiency
The Linear scale applies an intelligent chip with 60 m/min moving speed and 5μm resolution for higher working performance. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
Sturdy Aluminum Alloy
The scale body uses an aluminum profile, which is anti-vibration and not easy to deform. The read head is made of chrome-plated zinc alloy for high abrasive resistance and corrosion resistance.

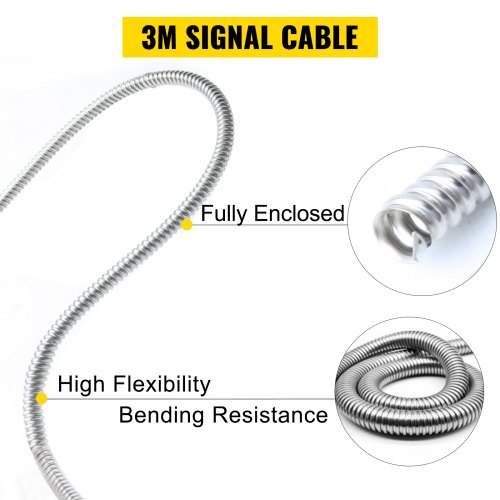

3M Signal Cable
The standard 3-meter signal cable uses a fully enclosed wave conduit with high flexibility and bending resistance. In addition, the encoder beam features a double-layer lip seal to give extra protection from contamination.
5 Bearing System
The sliding part is designed with a reliable and durable 5 bearing system for smooth operation. As a result, the repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
Effortless to Install
The high-accuracy linear scale features multiple installation holes for your convenient installation. Besides, individualized components make it easier to mount and maintain. It is comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
Wide Application
The linear scale is suitable for milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, and video measuring machines. In addition, you can use it to achieve the functions of movement controlling, position monitoring, coordinate measurement, etc.
Specifications
- Voltage: 5V DC
- Current: 50mA
- Travel Length: 250 mm & 1000 mm / 10’’ & 40’’
- Grating Pitch: 0.02 mm / 50 LP/min
- Resolution: 5μm
- Accuracy: ±0.005 mm / 0.0002" (at 20 deg C)
- Response Speed: 60 m/min or 40 inch/sec
- Cable Length: 3 m / 118.11''
- 250 mm Linear Scale Dimension(L x W x H): 39 x 2 x 5 cm / 15.35 x 0.79 x 1.97"
- 1000 mm Linear Scale Dimension(L x W x H): 114 x 2 x 5 cm / 44.88 x 0.79 x 1.97"
Package Content
- 1 x 250 mm / 10’’ Linear Scale
- 1 x 1000 mm / 40’’ Linear Scale
- 1 x Set of Accessory
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
250 mm & 1000 mm Precision Linear Scale
Our linear scale is a type of encoder with broad applications. It features optimal structure, good appearance, and high rigidity. Therefore, it can meet the needs of the majority of general machine users. The linear scale is suitable for the metalworking, such as lathes, cylindrical grinders, milling machines, surface grinders.
- High Performance
- Durable Aluminum Body
- Double Seal & Signal Cable
- Stable Slide Part
- Convenient & Practical
Excellent Efficiency
The Linear scale applies an intelligent chip with 60 m/min moving speed and 5μm resolution for higher working performance. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.
Sturdy Aluminum Alloy
The scale body uses an aluminum profile, which is anti-vibration and not easy to deform. The read head is made of chrome-plated zinc alloy for high abrasive resistance and corrosion resistance.
3M Signal Cable
The standard 3-meter signal cable uses a fully enclosed wave conduit with high flexibility and bending resistance. In addition, the encoder beam features a double-layer lip seal to give extra protection from contamination.
5 Bearing System
The sliding part is designed with a reliable and durable 5 bearing system for smooth operation. As a result, the repeated positioning measurement is more stable. L-shaped plate and one screw set are also included in the package.
Effortless to Install
The high-accuracy linear scale features multiple installation holes for your convenient installation. Besides, individualized components make it easier to mount and maintain. It is comprised of a rigid metal extrusion with slotted end blocks for simple adjustable mounting.
Wide Application
The linear scale is suitable for milling machines, drilling machines, grinding machines, lathes, profile projectors, microscopes, and video measuring machines. In addition, you can use it to achieve the functions of movement controlling, position monitoring, coordinate measurement, etc.
Package Content
- 1 x 250 mm / 10’’ Linear Scale
- 1 x 1000 mm / 40’’ Linear Scale
- 1 x Set of Accessory
Specifications
- Voltage: 5V DC
- Current: 50mA
- Travel Length: 250 mm & 1000 mm / 10’’ & 40’’
- Grating Pitch: 0.02 mm / 50 LP/min
- Resolution: 5μm
- Accuracy: ±0.005 mm / 0.0002" (at 20 deg C)
- Response Speed: 60 m/min or 40 inch/sec
- Cable Length: 3 m / 118.11''
- 250 mm Linear Scale Dimension(L x W x H): 39 x 2 x 5 cm / 15.35 x 0.79 x 1.97"
- 1000 mm Linear Scale Dimension(L x W x H): 114 x 2 x 5 cm / 44.88 x 0.79 x 1.97"
Compare with similar items
Specifications
| Voltage | 5V DC |
| Current | 50mA |
| Travel Length | 250 mm & 1000 mm / 10’’ & 40’’ |
| Grating Pitch | 0.02 mm / 50 LP/min |
| Resolution | 5μm |
| Accuracy | ±0.005 mm / 0.0002" (at 20 deg C) |
| Response Speed | 60 m/min or 40 inch/sec |
| Cable Length | 3 m / 118.11'' |
| 250 mm Linear Scale Dimension(L x W x H) | 39 x 2 x 5 cm / 15.35 x 0.79 x 1.97" |
| 1000 mm Linear Scale Dimension(L x W x H) | 114 x 2 x 5 cm / 44.88 x 0.79 x 1.97" |
Questions and Answers
Q: Hi,
Will you cut that for lenth i need for my machine?
A: No, it can not be cut.
